7. Moving Beyond Linearity

Author

이상민

Published

May 15, 2025

1. imports

import numpy as np, pandas as pd
from matplotlib.pyplot import subplots
import statsmodels.api as sm
from ISLP import load_data
from ISLP.models import (summarize, poly, ModelSpec as MS)
from statsmodels.stats.anova import anova_lm
from pygam import (s as s_gam, l as l_gam, f as f_gam, LinearGAM, LogisticGAM)
from ISLP.transforms import (BSpline, NaturalSpline)
from ISLP.models import bs, ns
from ISLP.pygam import (approx_lam, degrees_of_freedom, plot as plot_gam, anova as anova_gam)

2. Wage 데이터 분석

Wage = load_data('Wage')
y = Wage['wage']
age = Wage['age']

- 4차 다항식(\(x,x^2,x^3,x^4\))으로 분석

# 4차 다항식의 변수확장을 위한 전 처리
# ------------------------------------
poly_age = MS([poly('age', degree=4)]).fit(Wage)
M = sm.OLS(y, poly_age.transform(Wage)).fit()
summarize(M)

age_grid = np.linspace(age.min(), age.max(),100)
age_df = pd.DataFrame({'age': age_grid})
# 4차 다항식의 적합 결과를 그리기 위한 함수를 만들고 적합해서 결과를 확인함
# -------------------------------------------------------------------------
def plot_wage_fit(age_df, basis, title):
  X = basis.transform(Wage)
  Xnew = basis.transform(age_df)
  M = sm.OLS(y, X).fit()
  preds = M.get_prediction(Xnew)
  bands = preds.conf_int(alpha=0.05)
  fig , ax = subplots(figsize=(8,8))
  ax.scatter(age, y, facecolor='gray', alpha=0.5)
  for val, ls in zip([preds.predicted_mean, bands[:,0], bands[:,1]],['b','r--','r--']):
    ax.plot(age_df.values , val , ls, linewidth=3)
    ax.set_title(title , fontsize =20)
    ax.set_xlabel('Age', fontsize=20)
    ax.set_ylabel('Wage', fontsize=20);
  return ax
# 가운데 선은 평균, 위 아래 선들은 95% 수준의 (평균에 대한) 신뢰구간들임
# ---------------------------------------------------------------------
plot_wage_fit(age_df, poly_age, 'Degree -4 Polynomial');

- 다항식의 차수를 1차에서 5차까지 조정해보며 확인

summarize(M) #위 결과는 위에 있는 것임
models = [MS([poly('age', degree=d)]) for d in range(1, 6)]
Xs = [model.fit_transform(Wage) for model in models]
anova_lm(*[sm.OLS(y, X_).fit() for X_ in Xs])
df_resid ssr df_diff ss_diff F Pr(>F)
0 2998.0 5.022216e+06 0.0 NaN NaN NaN
1 2997.0 4.793430e+06 1.0 228786.010128 143.593107 2.363850e-32
2 2996.0 4.777674e+06 1.0 15755.693664 9.888756 1.679202e-03
3 2995.0 4.771604e+06 1.0 6070.152124 3.809813 5.104620e-02
4 2994.0 4.770322e+06 1.0 1282.563017 0.804976 3.696820e-01
models = [MS(['education', poly('age', degree=d)]) for d in range(1, 4)]
XEs = [model.fit_transform(Wage) for model in models]
anova_lm(*[sm.OLS(y, X_).fit() for X_ in XEs])
df_resid ssr df_diff ss_diff F Pr(>F)
0 2997.0 3.902335e+06 0.0 NaN NaN NaN
1 2996.0 3.759472e+06 1.0 142862.701185 113.991883 3.838075e-26
2 2995.0 3.753546e+06 1.0 5926.207070 4.728593 2.974318e-02
X = poly_age.transform(Wage)
high_earn = Wage['high_earn'] = y > 250 # shorthand
glm = sm.GLM(y > 250, X, family=sm.families.Binomial())
B = glm.fit()
summarize(B)
# logistic regression
coef std err z P>|z|
intercept -4.3012 0.345 -12.457 0.000
poly(age, degree=4)[0] 71.9642 26.133 2.754 0.006
poly(age, degree=4)[1] -85.7729 35.929 -2.387 0.017
poly(age, degree=4)[2] 34.1626 19.697 1.734 0.083
poly(age, degree=4)[3] -47.4008 24.105 -1.966 0.049

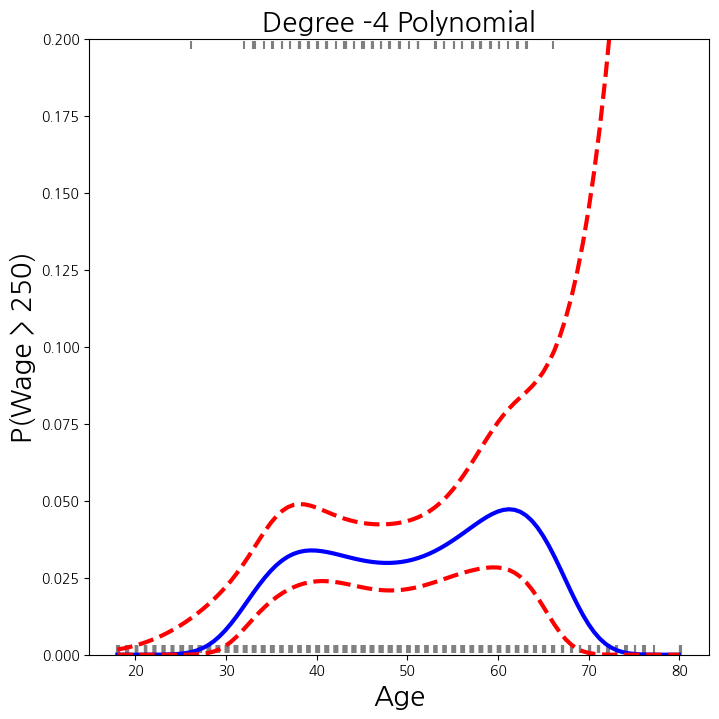

newX = poly_age.transform(age_df)
preds = B.get_prediction(newX)
bands = preds.conf_int(alpha=0.05)

fig , ax = subplots(figsize=(8,8))
rng = np.random.default_rng(0)
ax.scatter(age + 0.2 * rng.uniform(size=y.shape[0]), np.where(high_earn , 0.198, 0.002),
fc='gray', marker='|')
for val , ls in zip([preds.predicted_mean, bands[:,0], bands[:,1]], ['b','r--','r--']):
  ax.plot(age_df.values , val , ls, linewidth=3)
ax.set_title('Degree -4 Polynomial', fontsize=20)
ax.set_xlabel('Age', fontsize=20)
ax.set_ylim ([0,0.2])
ax.set_ylabel('P(Wage > 250)', fontsize=20);

cut_age = pd.qcut(age , 4)
summarize(sm.OLS(y, pd.get_dummies(cut_age)).fit())
coef std err t P>|t|
(17.999, 33.75] 94.1584 1.478 63.692 0.0
(33.75, 42.0] 116.6608 1.470 79.385 0.0
(42.0, 51.0] 119.1887 1.416 84.147 0.0
(51.0, 80.0] 116.5717 1.559 74.751 0.0

- age 변수에 대한 B-spline basis function을 생성하고 OLS를 적합해 봄

  • 안쪽 낫의 개수, 그리고 다항 차수에 따라 전체 basis 개수가 결정됨
bs_ = BSpline(internal_knots=[25,40,60], intercept=True).fit(age)
bs_age = bs_.transform(age)
bs_age.shape

bs_age = MS([bs('age', internal_knots=[25,40,60])])
Xbs = bs_age.fit_transform(Wage)
M = sm.OLS(y, Xbs).fit()
summarize(M)

bs_age = MS([bs('age', internal_knots=[25,40,60], name='bs(age)')])
Xbs = bs_age.fit_transform(Wage)
M = sm.OLS(y, Xbs).fit()
summarize(M)
coef std err t P>|t|
intercept 60.4937 9.460 6.394 0.000
bs(age)[0] 3.9805 12.538 0.317 0.751
bs(age)[1] 44.6310 9.626 4.636 0.000
bs(age)[2] 62.8388 10.755 5.843 0.000
bs(age)[3] 55.9908 10.706 5.230 0.000
bs(age)[4] 50.6881 14.402 3.520 0.000
bs(age)[5] 16.6061 19.126 0.868 0.385

- 자유도 6은 basis function들 6개를 의미

BSpline(df=6).fit(age).internal_knots_
array([33.75, 42.  , 51.  ])

- 자유도를 3으로하여 분석

bs_age0 = MS([bs('age', df=3, degree=0)]).fit(Wage)
Xbs0 = bs_age0.transform(Wage)
summarize(sm.OLS(y, Xbs0).fit())
coef std err t P>|t|
intercept 94.1584 1.478 63.687 0.0
bs(age, df=3, degree=0)[0] 22.3490 2.152 10.388 0.0
bs(age, df=3, degree=0)[1] 24.8076 2.044 12.137 0.0
bs(age, df=3, degree=0)[2] 22.7814 2.087 10.917 0.0

- Natural Cubic Spline : 3차 다항에 선형을 결합

ns_age = MS([ns('age', df=5)]).fit(Wage)
M_ns = sm.OLS(y, ns_age.transform(Wage)).fit()
summarize(M_ns)

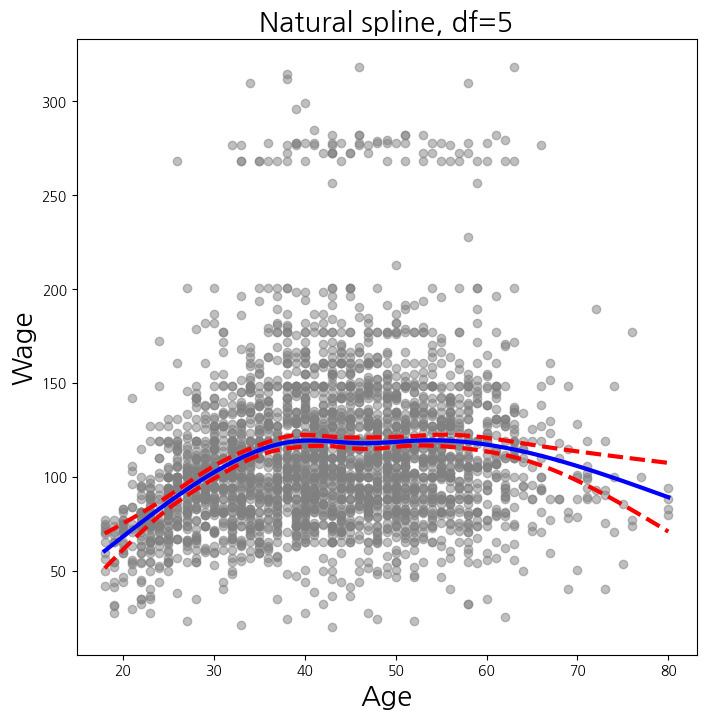

plot_wage_fit(age_df, ns_age, 'Natural spline, df=5');

- Smoothing spline

X_age = np.asarray(age).reshape((-1,1))
gam = LinearGAM(s_gam(0, lam=0.6))
gam.fit(X_age , y)
LinearGAM(callbacks=[Deviance(), Diffs()], fit_intercept=True,
   max_iter=100, scale=None, terms=s(0) + intercept, tol=0.0001,
   verbose=False)

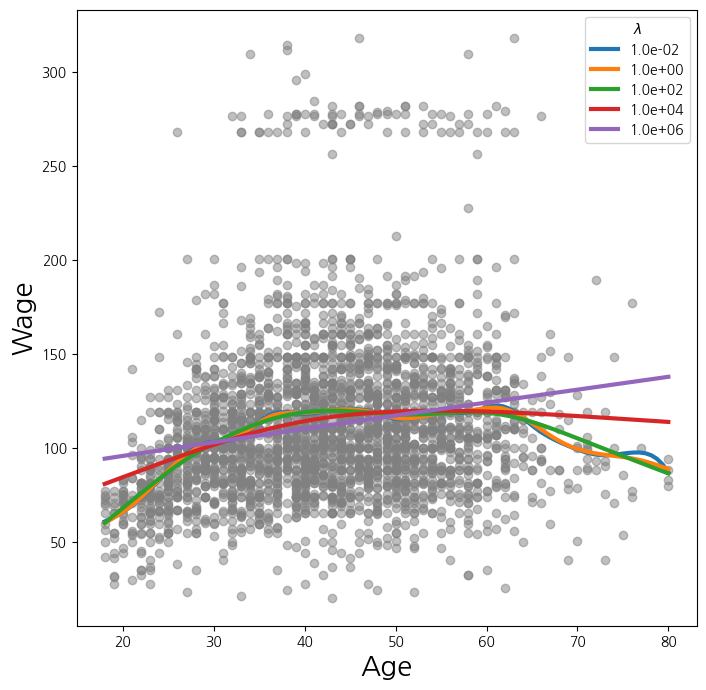

fig , ax = subplots(figsize=(8,8))
ax.scatter(age , y, facecolor='gray', alpha=0.5)
for lam in np.logspace(-2, 6, 5):
  gam = LinearGAM(s_gam(0, lam=lam)).fit(X_age , y)
  ax.plot(age_grid, gam.predict(age_grid), label='{:.1e}'.format(lam), linewidth=3)
ax.set_xlabel('Age', fontsize=20)
ax.set_ylabel('Wage', fontsize=20);
ax.legend(title='$\lambda$');

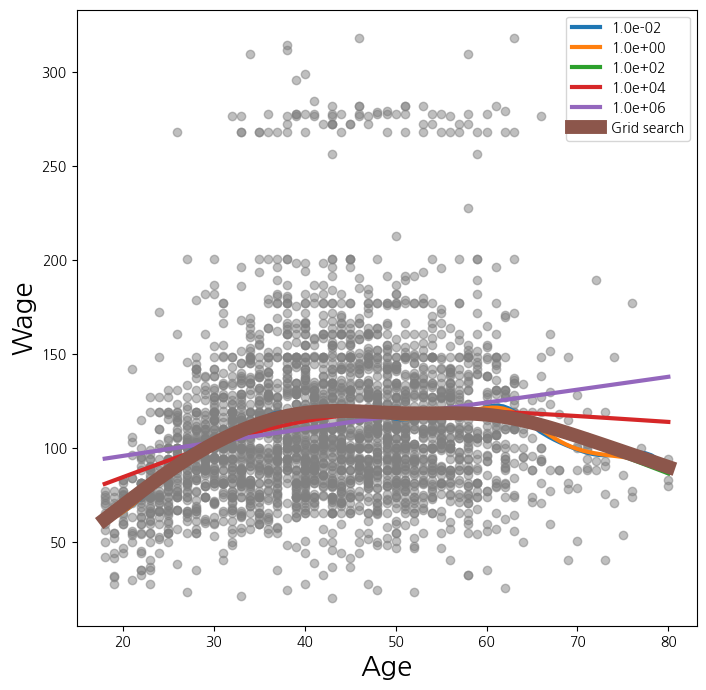

gam_opt = gam.gridsearch(X_age , y)
ax.plot(age_grid, gam_opt.predict(age_grid), label='Grid search', linewidth=10)
ax.legend()
fig
100% (11 of 11) |########################| Elapsed Time: 0:00:00 Time:  0:00:000:00
