import gymnasium as gym
#--#
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.animation import FuncAnimation
import IPython
#--#
import collections
import random
#--#
import torch1. imports
def show(imgs,jump=10):
imgs = imgs[::jump]
fig = plt.Figure()
ax = fig.subplots()
def update(i):
ax.imshow(imgs[i])
ani = FuncAnimation(fig,update,frames=len(imgs))
display(IPython.display.HTML(ani.to_jshtml()))2. 예비학습
- random.sample()의 용법을 살펴보자.
- 예시1
random.sample([1,2,3,4,5],2)[5, 4]- 예시2
s = [[0,0], [0,2], [3,2]]
a = [0,1,2]
memory = list(zip(s,a))
random.sample(memory,2)[([3, 2], 2), ([0, 0], 0)]3. env: LunarLander
- ref: https://gymnasium.farama.org/environments/box2d/lunar_lander/
- Lunar Lander: 요약
Observation Space (State Space) – 8개의 변수
- 착륙선의 x 좌표
- 착륙선의 y 좌표
- 착륙선의 x 속도
- 착륙선의 y 속도
- 착륙선의 각도
- 착륙선의 각속도
- 왼쪽 다리가 땅에 닿아있는지 여부 (1 또는 0)
- 오른쪽 다리가 땅에 닿아있는지 여부 (1 또는 0)
Action Space – 4개의 변수
- {0 : 아무 행동도 하지 않음}
- {1 : 왼쪽 엔진 발사 (오른쪽으로 기울임)}
- {2 : 메인 엔진 발사 (위로 밀어 올림)}
- {3 : 오른쪽 엔진 발사 (왼쪽으로 기울임)}
Reward
- 거리 보상: 착륙 패드에 가까울수록 보상 증가
- 속도 보상: 속도가 낮을수록 보상 증가
- 각도 보상: 각도가 수직에 가까울수록 보상 증가
- 착륙 다리 보상: 다리가 착륙 패드에 닿으면 보상
- 연료 사용 패널티: 엔진 사용 시 패널티
- 안전한 착륙 보상: 안정적으로 착륙 시 큰 보상 (+100~+140)
- 충돌 패널티: 착륙 패드 이외의 장소에 충돌 시 패널티 (-100)
- 환경생성
env = gym.make("LunarLander-v3", render_mode = "rgb_array")
env <TimeLimit<OrderEnforcing<PassiveEnvChecker<LunarLander<LunarLander-v3>>>>>- state_space
- 8개의 숫자가 포함된 array가 나옴
- 이 8개의 숫자는 각각 상태를 의미함
env.observation_space.sample()array([ 1.5661429 , 2.0985909 , -6.819891 , 0.79915875, 0.11544446,
5.311452 , 0.38997647, 0.42177776], dtype=float32)- action_space
- 0,1,2,3 중 하나가 랜덤으로 뽑힘
env.action_space.sample()2- env.reset()
env.reset()(array([ 0.0035428 , 1.4028119 , 0.3588284 , -0.36037555, -0.00409838,
-0.08127995, 0. , 0. ], dtype=float32),

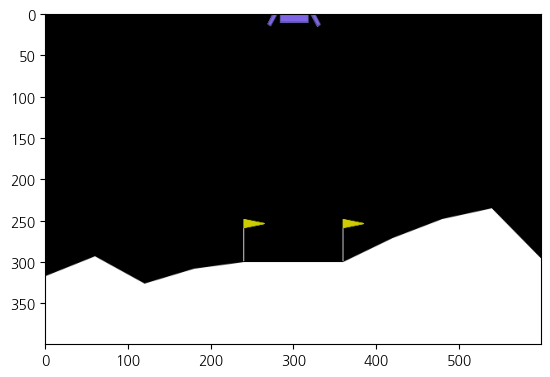

{})- env.render()
plt.imshow(env.render())_files/figure-html/cell-10-output-1.png)
- env.step
env.step??Signature: env.step(action: 'ActType') -> 'tuple[ObsType, SupportsFloat, bool, bool, dict[str, Any]]' Source: def step( self, action: ActType ) -> tuple[ObsType, SupportsFloat, bool, bool, dict[str, Any]]: """Steps through the environment and if the number of steps elapsed exceeds ``max_episode_steps`` then truncate. Args: action: The environment step action Returns: The environment step ``(observation, reward, terminated, truncated, info)`` with `truncated=True` if the number of steps elapsed >= max episode steps """ observation, reward, terminated, truncated, info = self.env.step(action) self._elapsed_steps += 1 if self._elapsed_steps >= self._max_episode_steps: truncated = True return observation, reward, terminated, truncated, info File: ~/anaconda3/envs/pypy/lib/python3.10/site-packages/gymnasium/wrappers/common.py Type: method
- 리턴되는 값은
observation,reward,terminated,truncated,info - 우리가 쓰는 값은
observation,reward,terminated,truncated
- play
첫시작화면
env.reset()
plt.imshow(env.render())_files/figure-html/cell-12-output-1.png)

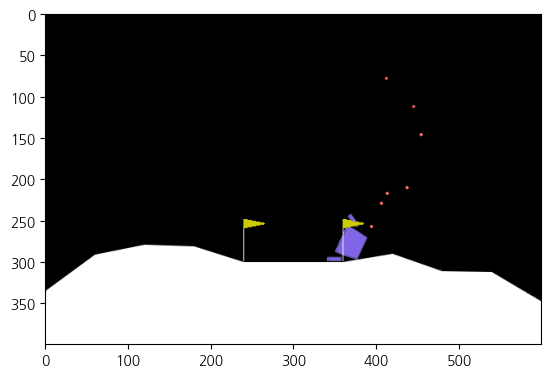

- 플레이해보자
for _ in range(5):
env.step(0)
env.step(3)
plt.imshow(env.render())_files/figure-html/cell-13-output-1.png)
4. 시각화
state, _ = env.reset()
imgs = []
for t in range(500):
action = env.action_space.sample()
next_state, reward, terminated, truncated, _ = env.step(action)
imgs.append(env.render())
state = next_state
if terminated or truncated:
breakshow(imgs)5. RandomAgent
class RandomAgent:
def __init__(self):
self.action_spcae = gym.spaces.Discrete(4)
self.n_experieces = 0
#---#
self.state = None
self.action = None
self.reward = None
self.next_state = None
self.terminated = None
#---#
self.states = collections.deque(maxlen = 5000)
self.actions = collections.deque(maxlen = 5000)
self.rewards = collections.deque(maxlen = 5000)
self.next_states = collections.deque(maxlen = 5000)
self.terminations = collections.deque(maxlen = 5000)
def act(self):
self.action = self.action_spcae.sample()
def learn(self):
pass
def save_experience(self):
self.states.append(torch.tensor(self.state))
self.actions.append(self.action)
self.rewards.append(self.reward)
self.next_states.append(torch.tensor(self.next_state))
self.terminations.append(self.terminated)
self.n_experieces = self.n_experieces+1env = gym.make("LunarLander-v3", render_mode = "rgb_array")
player = RandomAgent()
player.state,_ = env.reset()
for e in range(1,101):
while True:
# step1
player.act()
# step2
player.next_state, player.reward, player.terminated, player.truncated, _ = env.step(player.action)
# step3
player.save_experience()
player.learn()
# step4
if player.terminated or player.truncated:
player.state, _ = env.reset()
break
else:
player.state = player.next_state6. q_net
# 이제 우리가 할것: q_table --> action 을 결정해야함.
# 4x4 그리드 -- 복습
# q_table[상태] = [행동0을했을때 품질, 행동1을했을때품질, 행동2를했을때품질, 행동3을했을때품질]
# 행동 = argmax(q_talbe[상태])
# 루나랜더 -- 오늘 할것
# q_net[8개의숫자] = [행동0을했을때 품질, 행동1을했을때품질, 행동2를했을때품질, 행동3을했을때품질] # 결국 숫자8개를 숫자4개로 만들어주는 적당한 q_net을 구성
# 행동 = argmax(q_net[8개의숫자])- 전략: 4x4에서 q_table에 대응하는 뭔가가 있으면 된다. 그런데 q_table와 같이 테이블 형식으로는 힘들것 같다. \(\to\) q_net를 만들자.
- 4x4 grid: 상태공간의 차원은 2차원이며 가질수 있는 값은 16개, 각 상태공간에서 할수 있는 행동이 4개 -> 총 16*4의 경우의 수에 대한 reward만 조사하면 되었음
- LunarLander: 상태공간의 차원은 8차원이지만 가질수 있는 값의 범위는 무한대 -> 무수히 많은 경우에 대한 reward 값을 조사하는건 현실적으로 불가능
상황
state = player.states[100]
action = player.actions[100]
reward = player.rewards[100]
next_state = player.next_states[100]
terminated = player.terminations[100]A. q_net
player.q_net = torch.nn.Sequential(
torch.nn.Linear(8,256),
torch.nn.ReLU(),
torch.nn.Linear(256,128),
torch.nn.ReLU(),
torch.nn.Linear(128,64),
torch.nn.ReLU(),
torch.nn.Linear(64,4)
)player.q_net(state)tensor([ 0.0098, -0.0635, 0.0726, 0.0752], grad_fn=<ViewBackward0>)- 8개의 숫자가 들어가서 4개의 숫자가 나옴
B. q_hat
player.q_net(state)tensor([ 0.0098, -0.0635, 0.0726, 0.0752], grad_fn=<ViewBackward0>)action0q_hat = player.q_net(state)[action]q_hattensor(0.0098, grad_fn=<SelectBackward0>)C. q (\(q = r + 0.99 \times {\tt future}\))
if terminated:
q = reward # q는 꼬리표가 없는 숫자
else:
future = player.q_net(next_state).max().data # future에 꼬리표가 있으면 q에도 꼬리표가 생기므로 꼬리표 제거
q = reward + 0.99 * future # q는 꼬리표가 없는 숫자 D. q_hat 을 점점 q 와 비슷하게 만드는 과정 = player.q_net를
학습하는 과정
# loss = (q_hat - q)**2
# loss를 점차 줄이면됨player.optimizr = torch.optim.Adam(player.q_net.parameters())
for epoc in range(5):
memory = list(zip(player.states, player.actions, player.rewards, player.next_states, player.terminations))
mini_batch = random.sample(memory,64)
# step1-2
loss = 0
for s,a,r,ss,tmd in mini_batch:
q_hat = player.q_net(s)[a]
if tmd:
q = r
else:
future = player.q_net(ss).max().data
q = r + 0.99 * future
loss = loss + (q_hat-q)**2
loss = loss / 64
# step3
loss.backward()
# step4
player.optimizr.step()
player.optimizr.zero_grad()E. 행동
# 이전에는 아래와 같은 방식
## 1. 특정 시점 이전에는 계속 랜덤액션만
## 2. 특정 시점 이후에는 계속 q_table에서 도출되는 행동만
# 이번에는 아래와 같이 해보자.
## 1. 처음에는 랜덤액션
## 2. 점차 에피소드가 지날수록, q_net에서 근거한 행동만player.eps = 0.5
if random.random() < player.eps:
player.action = player.action_spcae.sample()
else:
state = torch.tensor(player.state)
player.action = player.q_net(state).argmax().item()# 다음에피소드에서는 아래와 같이 확률을 조금 낮게
player.eps = player.eps* 0.99 7. Agent
class Agent(RandomAgent):
def __init__(self):
super().__init__()
self.eps = 1.0
self.q_net = torch.nn.Sequential(
torch.nn.Linear(8,256),
torch.nn.ReLU(),
torch.nn.Linear(256,128),
torch.nn.ReLU(),
torch.nn.Linear(128,64),
torch.nn.ReLU(),
torch.nn.Linear(64,4)
)
self.optimizr = torch.optim.Adam(self.q_net.parameters())
def act(self):
if random.random() < self.eps:
self.action = self.action_spcae.sample()
else:
state = torch.tensor(self.state)
self.action = self.q_net(state).argmax().item()
def learn(self):
if self.n_experieces > 64:
for epoc in range(1):
memory = list(zip(self.states, self.actions, self.rewards, self.next_states, self.terminations))
mini_batch = random.sample(memory,64)
# step1-2
loss = 0
for s,a,r,ss,tmd in mini_batch:
q_hat = self.q_net(s)[a]
if tmd:
q = r
else:
future = self.q_net(ss).max().data
q = r + 0.99 * future
loss = loss + (q_hat-q)**2
loss = loss / 64
# step3
loss.backward()
# step4
self.optimizr.step()
self.optimizr.zero_grad() 8. 풀이
env = gym.make("LunarLander-v3", render_mode = "rgb_array")
player = Agent()
player.state, _ = env.reset()
score = 0
playtime = 0
scores = []
playtimes = []
#---#
for e in range(1,2001):
#---에피소드시작---#
while True:
#step1
player.act()
#step2
player.next_state, player.reward, player.terminated, player.truncated, _ = env.step(player.action)
#step3
player.save_experience()
player.learn()
#step4
if player.terminated or player.truncated:
score = score + player.reward
scores.append(score)
score = 0
playtimes.append(playtime)
playtime = 0
player.state, _ = env.reset()
break
else:
score = score + player.reward
playtime = playtime + 1
player.state = player.next_state
#---에피소드끝---#
player.eps = player.eps * 0.995
if (e % 50) ==0:
print(
f"에피소드: {e}\t",
f"경험: {player.n_experieces}\t",
f"점수(평균): {np.mean(scores[-100:]):.2f}\t",
f"게임시간(평균): {np.mean(playtimes[-100:]):.2f}\t",
f"돌방행동: {player.eps:.2f}\t",
)
if np.mean(scores[-100:]) > 200:
print("--루나랜더 클리어(2025.06.14.)--")
break에피소드: 50 경험: 5267 점수(평균): -211.74 게임시간(평균): 104.34 돌방행동: 0.78 --------------------------------------------------------------------------- KeyboardInterrupt Traceback (most recent call last) Cell In[55], line 18 16 #step3 17 player.save_experience() ---> 18 player.learn() 19 #step4 20 if player.terminated or player.truncated: Cell In[54], line 33, in Agent.learn(self) 31 q = r 32 else: ---> 33 future = self.q_net(ss).max().data 34 q = r + 0.99 * future 35 loss = loss + (q_hat-q)**2 File ~/anaconda3/envs/pypy/lib/python3.10/site-packages/torch/nn/modules/module.py:1532, in Module._wrapped_call_impl(self, *args, **kwargs) 1530 return self._compiled_call_impl(*args, **kwargs) # type: ignore[misc] 1531 else: -> 1532 return self._call_impl(*args, **kwargs) File ~/anaconda3/envs/pypy/lib/python3.10/site-packages/torch/nn/modules/module.py:1541, in Module._call_impl(self, *args, **kwargs) 1536 # If we don't have any hooks, we want to skip the rest of the logic in 1537 # this function, and just call forward. 1538 if not (self._backward_hooks or self._backward_pre_hooks or self._forward_hooks or self._forward_pre_hooks 1539 or _global_backward_pre_hooks or _global_backward_hooks 1540 or _global_forward_hooks or _global_forward_pre_hooks): -> 1541 return forward_call(*args, **kwargs) 1543 try: 1544 result = None File ~/anaconda3/envs/pypy/lib/python3.10/site-packages/torch/nn/modules/container.py:217, in Sequential.forward(self, input) 215 def forward(self, input): 216 for module in self: --> 217 input = module(input) 218 return input File ~/anaconda3/envs/pypy/lib/python3.10/site-packages/torch/nn/modules/module.py:1532, in Module._wrapped_call_impl(self, *args, **kwargs) 1530 return self._compiled_call_impl(*args, **kwargs) # type: ignore[misc] 1531 else: -> 1532 return self._call_impl(*args, **kwargs) File ~/anaconda3/envs/pypy/lib/python3.10/site-packages/torch/nn/modules/module.py:1541, in Module._call_impl(self, *args, **kwargs) 1536 # If we don't have any hooks, we want to skip the rest of the logic in 1537 # this function, and just call forward. 1538 if not (self._backward_hooks or self._backward_pre_hooks or self._forward_hooks or self._forward_pre_hooks 1539 or _global_backward_pre_hooks or _global_backward_hooks 1540 or _global_forward_hooks or _global_forward_pre_hooks): -> 1541 return forward_call(*args, **kwargs) 1543 try: 1544 result = None File ~/anaconda3/envs/pypy/lib/python3.10/site-packages/torch/nn/modules/activation.py:103, in ReLU.forward(self, input) 102 def forward(self, input: Tensor) -> Tensor: --> 103 return F.relu(input, inplace=self.inplace) File ~/anaconda3/envs/pypy/lib/python3.10/site-packages/torch/nn/functional.py:1500, in relu(input, inplace) 1498 result = torch.relu_(input) 1499 else: -> 1500 result = torch.relu(input) 1501 return result KeyboardInterrupt:
player_dummy = Agent()
player_dummy.q_net.load_state_dict(
torch.load("q_net.pth")
)
player_dummy.state, _ = env.reset()
imgs = []player_dummy.eps = 0
while True:
player_dummy.act()
player_dummy.next_state, player_dummy.reward, player_dummy.terminated, player_dummy.truncated, _ = env.step(player_dummy.action)
imgs.append(env.render())
if player_dummy.terminated or player_dummy.truncated:
break
else:
player_dummy.state = player_dummy.next_stateshow(imgs)
